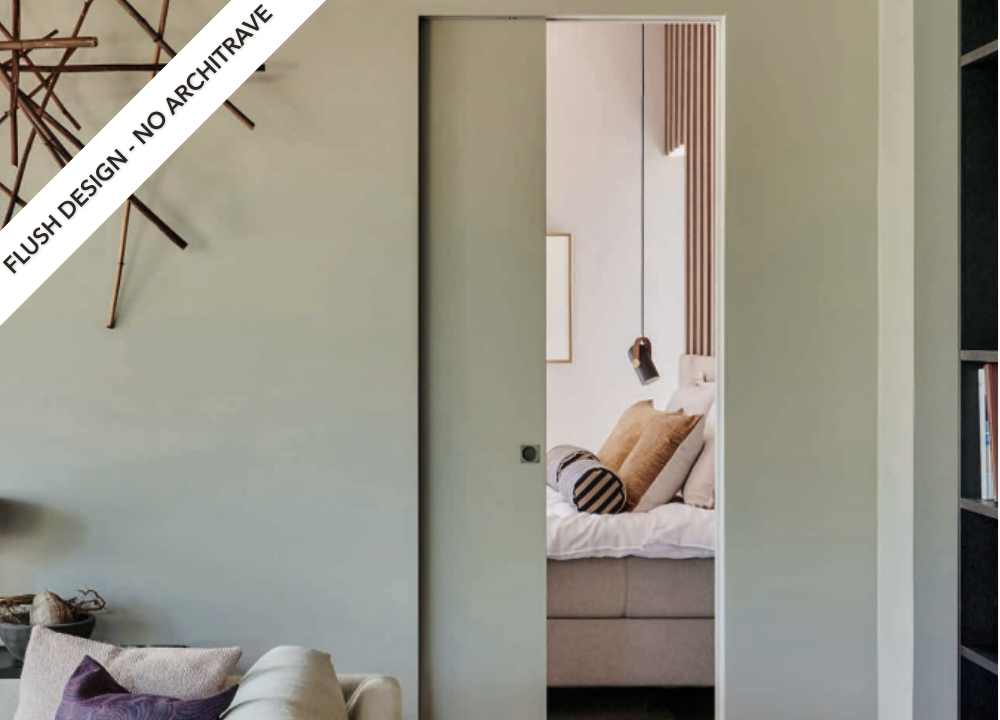

The Syntesis® Flush Pocket Door System

The new and improved system provides even greater ease of installation with the addition of new Eclisse features to further increase stability and provide a professional finish:

  • IMPROVED Pocket Horizontals - with micro-perforations (Eclisse Patent) specifically designed to ease the screwing of the plasterboard to the frame structure. Attaching the plasterboard is now even easier and faster.
  • NEW Improved Quick-Click Fixing system – Our new, improved ‘Quick-Click’ frame combines quick and easy assembly with increased stability making the frame even stronger!
  • NEW Frame details - a special lasered mark on the central vertical allows you to easily identify the centre of the pocket horizontal, making the screwing of the plasterboard sheet to the metal structure even more straightforward.

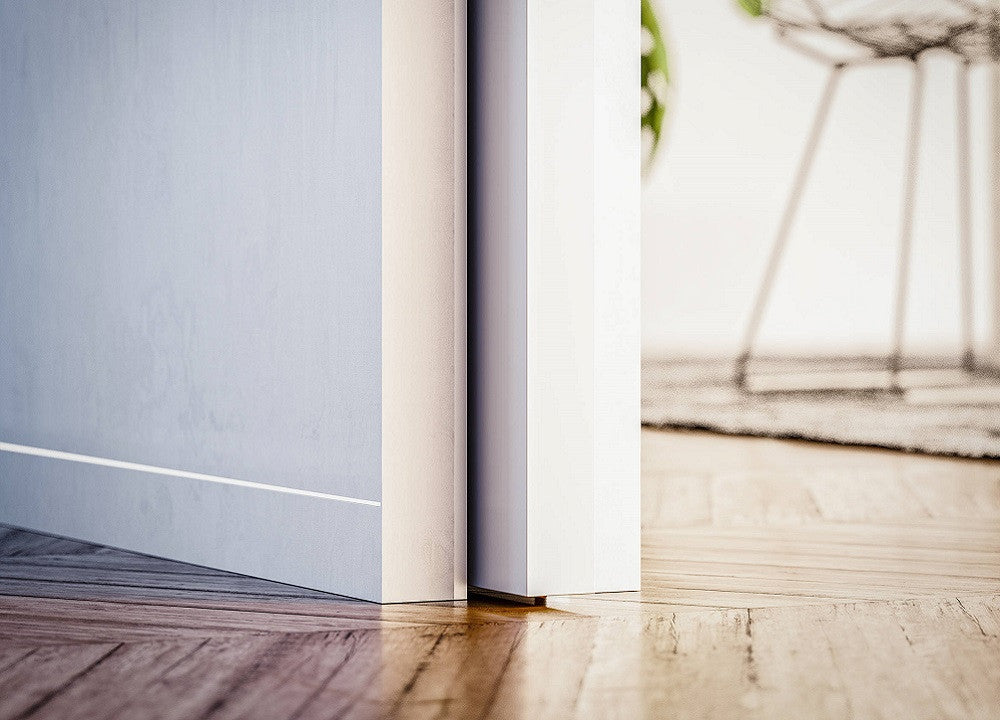

  • NEW Edge Profiles– produce a crisp plaster finish even more easily with new redesigned edge profiles – a great time saver!

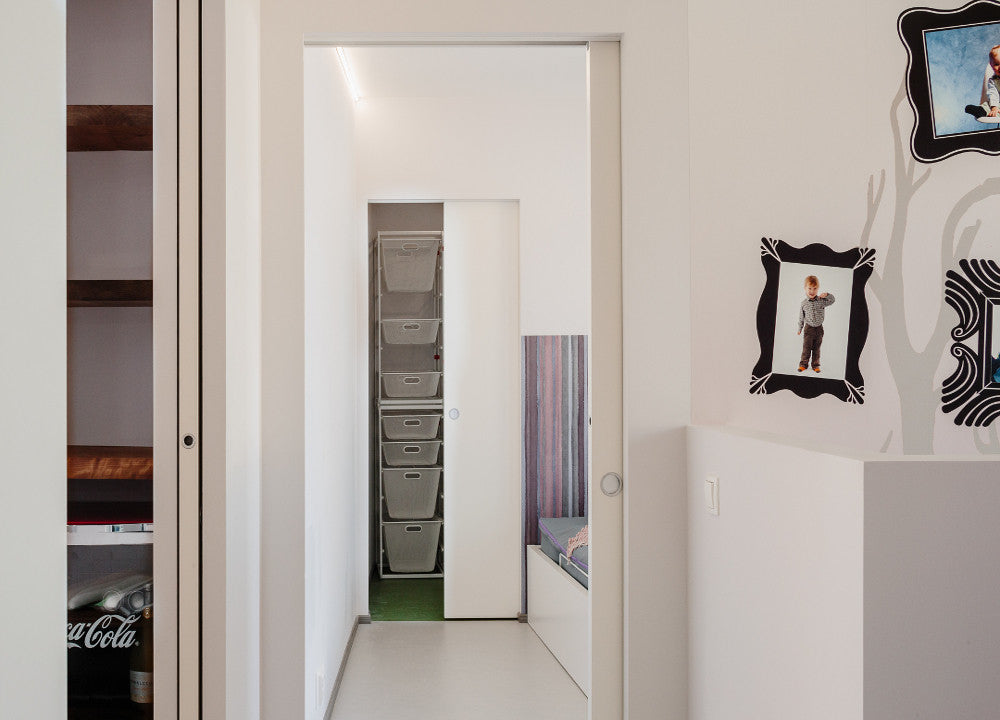

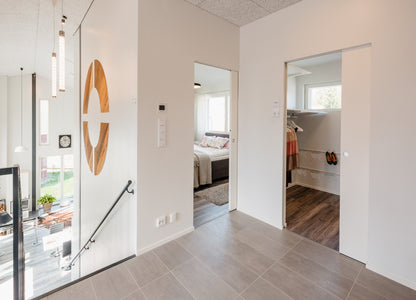

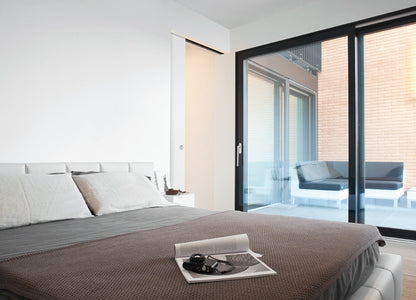

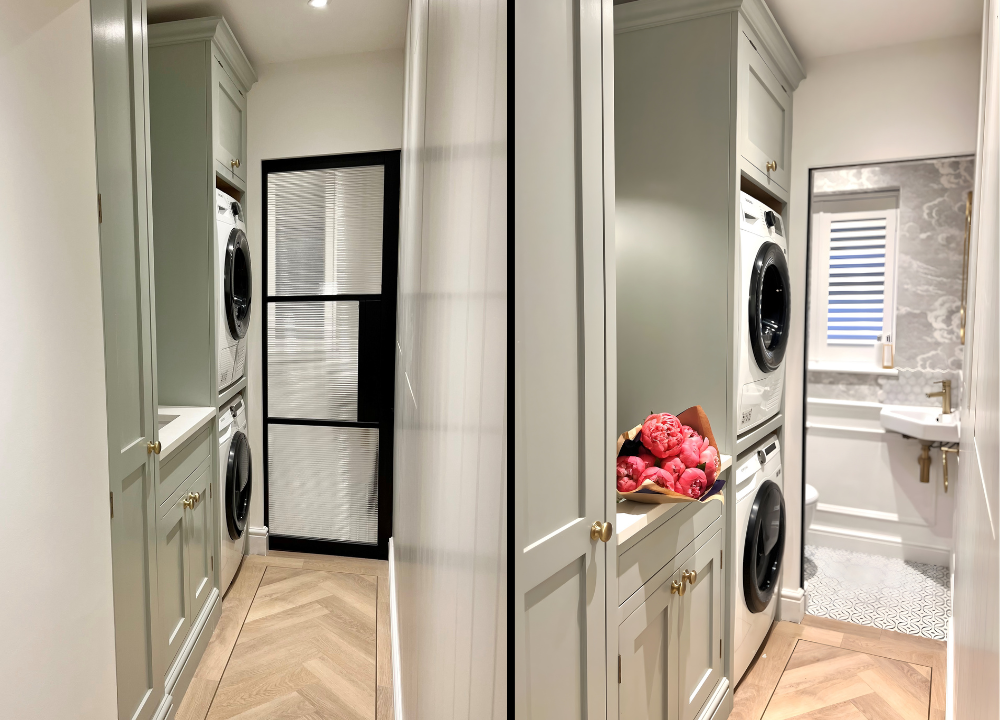

A perfect solution for bathrooms, en-suites, utility rooms, walk in wardrobes, in fact, anywhere in a property where you wish to better use space that would otherwise be taken up by the swing of a hinged door.

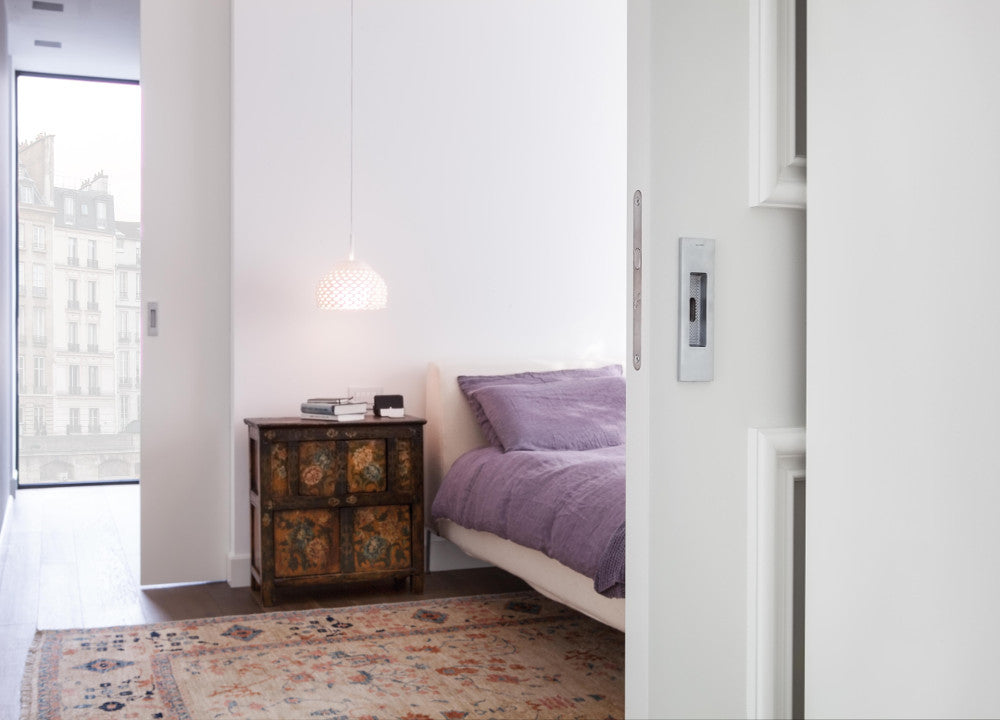

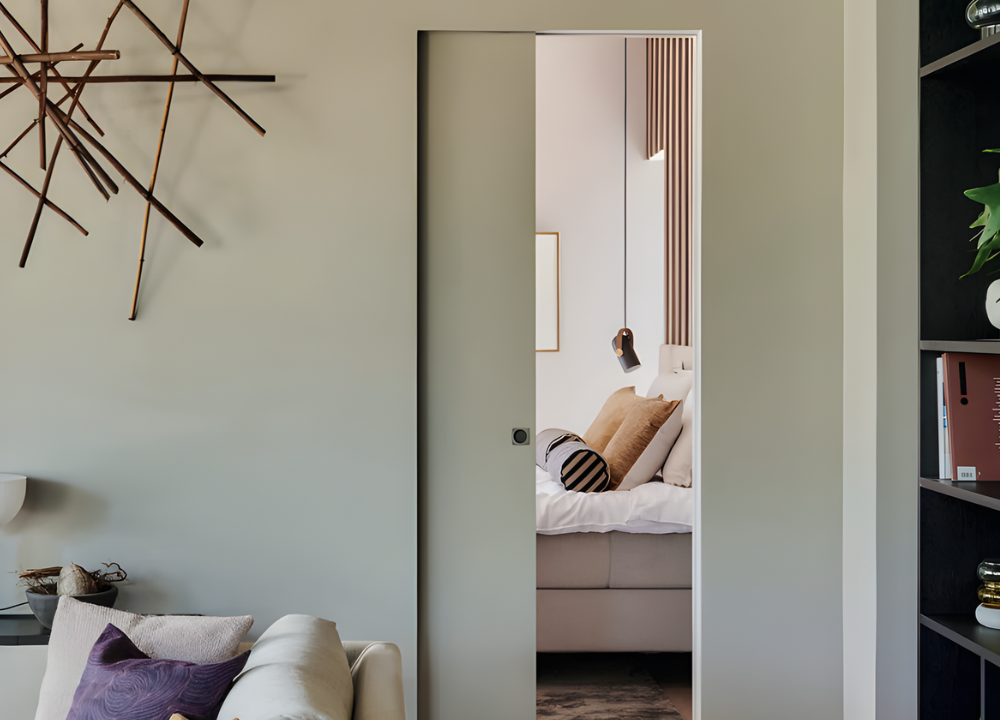

The Syntesis® Flush Pocket Door system provides you with a door that is there when you need it, and that is capable of blending, almost disappearing into its surroundings. When you open it, it disappears into a pocket in the wall. The perfect disappearing act!

Space-saving and discrete, the single Syntesis® Flush Pocket Door system gives you more options. More layout options and more design options.

Note: This product page is for the 100mm finished wall thickness system and for the most popular sizes of finished wall thickness 125mm. These sizes will be supplied from stock.

If you need a made to order size with finished wall thickness 125mm or 150mm please call us on 0333 5770828. The lead time on 125 and 150mm made-to-order finished wall thickness versions is 4-5 weeks.


Money Back Guarantee:  We are so confident in our guaranteed next day and dedicated day service that will refund you the delivery cost if you products are not delivered on the date agreed*

Standard Delivery - Estimated 1-3 working days £5.99

Guaranteed Next Day Delivery* (eligible postcodes only) - Order before 1pm on a weekday for next working day delivery - £9.99

Guaranteed Dedicated Day Delivery* (eligible postcodes only) - £19.99

  • £259.00 + Vat includes the complete sliding system in stainless steel, Karis satin glass door, the stainless round flush pull handle and the floor guide.
  • For delivery to islands, Highlands, N Ireland and ROI please contact us.
*Providing you do not fail to take delivery on the date agreed.  Please see our terms and conditions for further information.
Terms and conditions

For deliveries to highlands, Islands and Northern Ireland please call 0333 5770828

Compatible Accessories

Compatible Handles

WHAT'S INCLUDED IN THIS KIT:

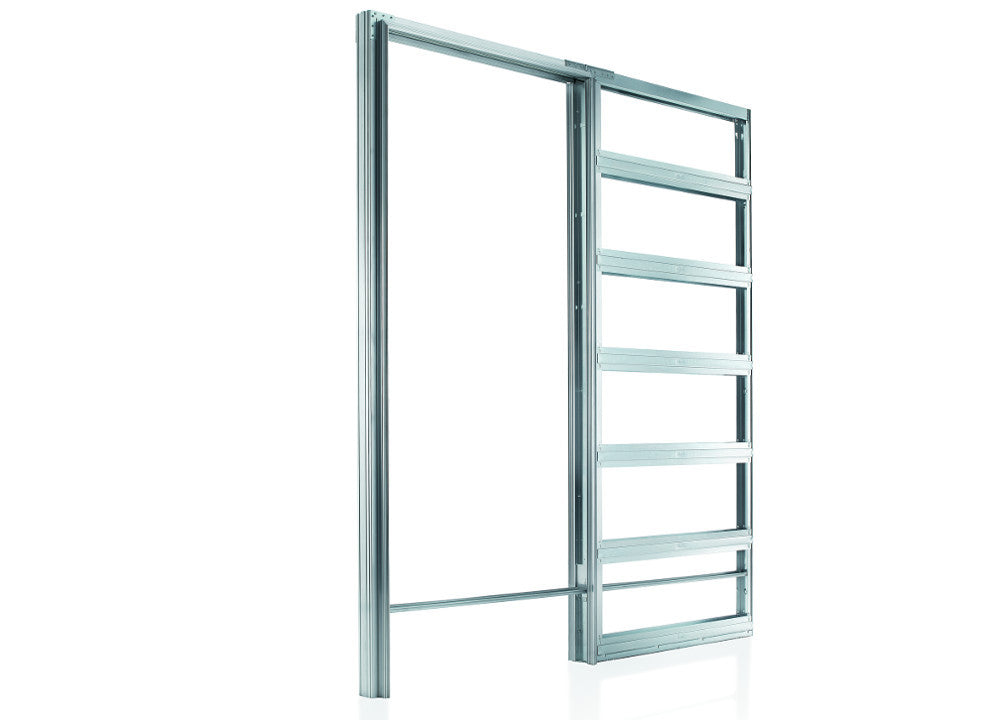

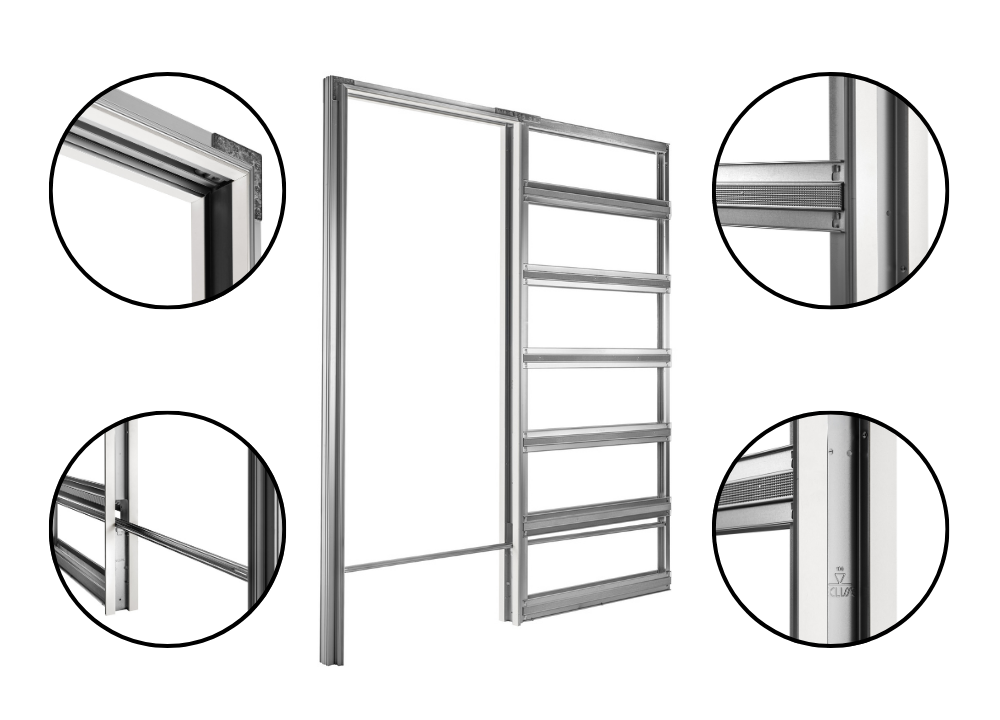

  • Galvanised steel frame
    Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of full pocket, track and doorpost. The Syntesis® Flush range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger aluminium profiles and reinforced joints to reduce the risk of plaster cracking to a very minimum.
  • Runners
    Runners are tested to 100,000 cycles (that’s around 25 years of average use!)
  • Extractable Track
    Track can be extracted without having to break into the wall. (See Tech Tips section in Technical tab for instructions).
  • Front and rear door stop
    Can be adjusted to determine how far the door protrudes from the pocket.
  • Metal anti-warp door profile
    Slots into a channel in underside of door. Not visible but ensures that if your door warps it continues to slide smoothly.
  • Self centering door guide
    Clicks into frame, doesn't screw into the floor, so it is perfectly centred every time.
  • Fixings
    Even the screws to attach the plasterboard to the frame are included.
  • Parts List with Images
    View

OPTIONAL ACCESSORIES: BIAS® soft-close with anti-slam,BIAS® DS Bi-directional soft-close with anti-slam,Flush Skirting

GUARANTEE: 15 year guarantee on the complete Eclisse steel pocket system and runners.

NOTE:

  • When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.
  • Important: Install at finished floor level.
  • TECHNICAL SPEC: Download
  • DOOR PANEL WEIGHT: 100kg
  • BESPOKE SIZING AVAILABLE?: Yes- The Syntesis® Flush Pocket Door Single is available in non-standard sizes up to a 1300mm x 3000mm passage size.
  • DOOR THICKNESS: 35 - 44mm
  • FINISHED WALL THICKNESS: 100 or 125mm or 150mm
  • SYSTEM TYPE: For use with timber doors - NB.The brackets for the Syntesis Flush system require you to route a 20mm deep channel in the top of the door for the special brackets. These are then screwed into place so this requires approx. 60mm depth in total. Please ensure the top rail of the door is the correct depth or that the door core is suitable to fix into.
  • DOOR SUPPLIED?: No- you can use a standard UK or ROI door panel size (seeTechnical Spec)

DOWNLOADS

TECH TIPS:

1) Video on how to extract the track.View(NB. To access the track you will need to follow the instructions above on how remove the door first. You may also need to adjust the door stop to access one of the screws).
