Eclisse

Classic DOUBLE Pocket Door System - Beech Jambs

FROM: £471.00 GBP (Excl. VAT)
FROM: £549.50 GBP (Incl. VAT)

FROM: £471.00 GBP

Sale Sold out

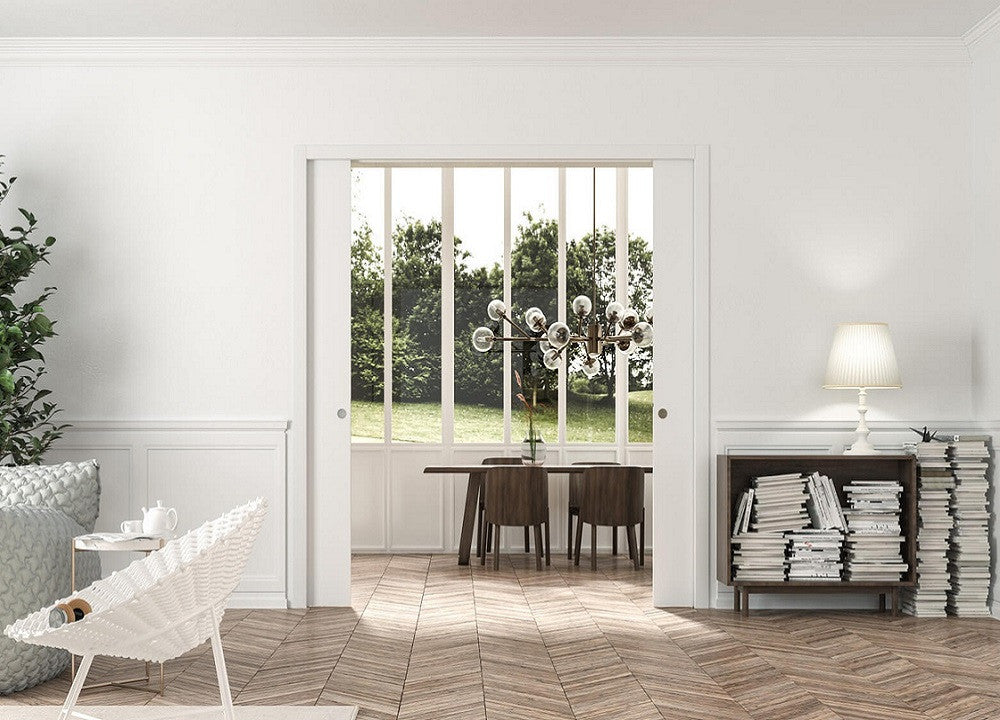

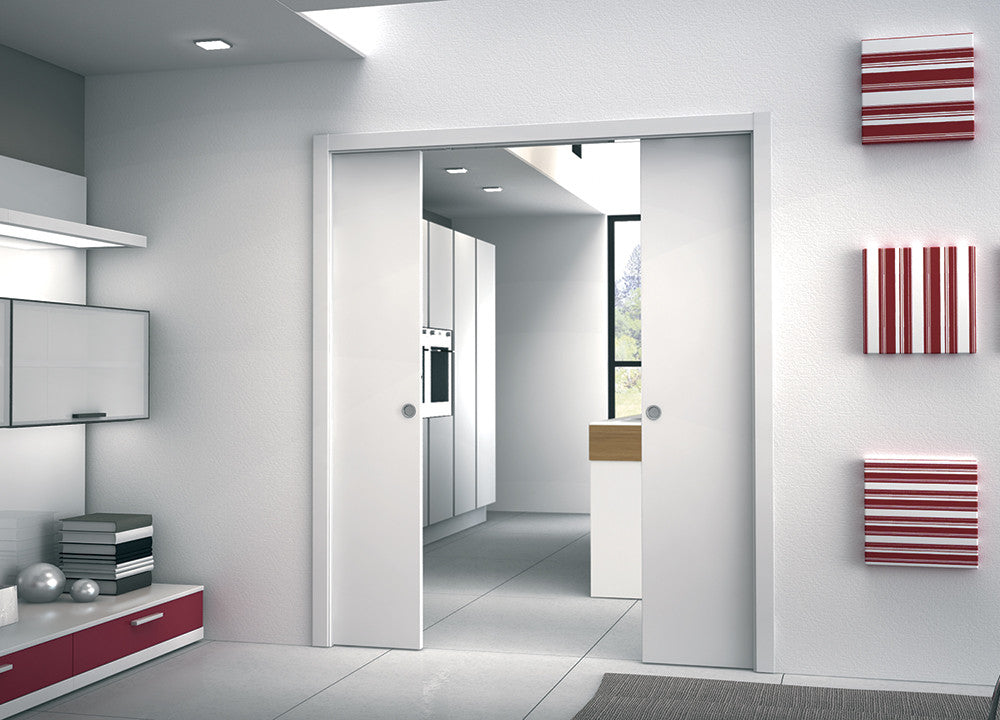

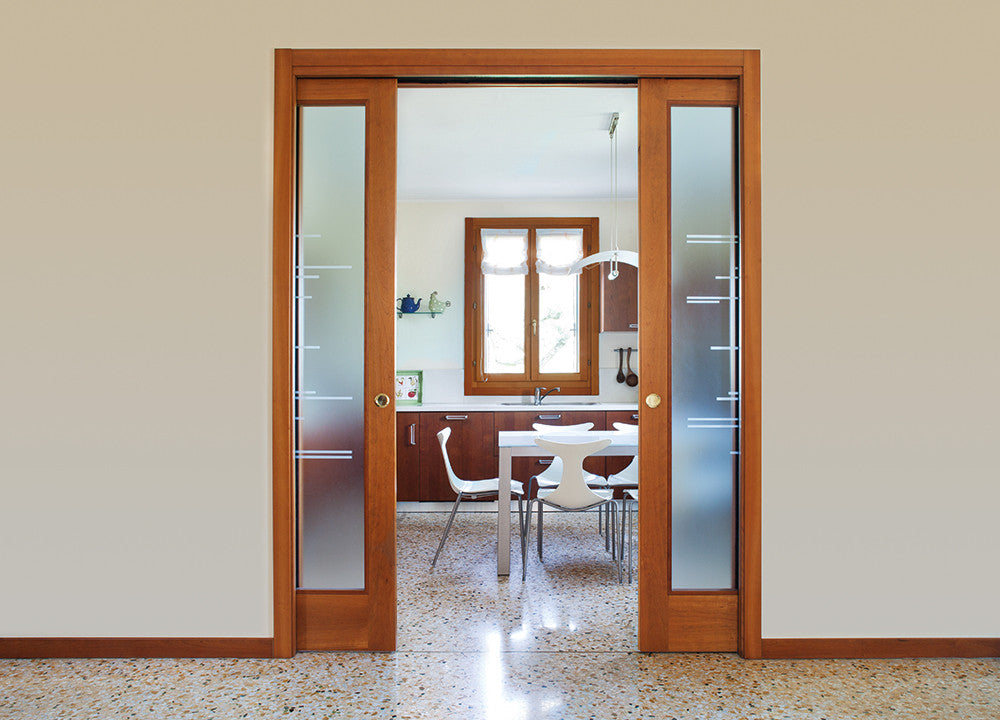

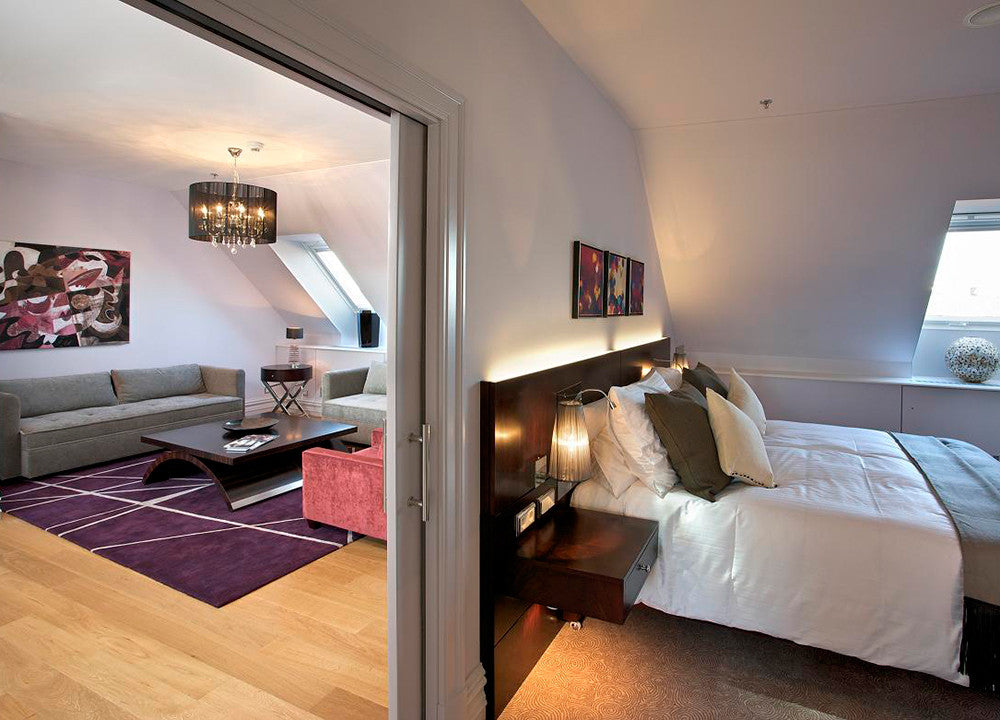

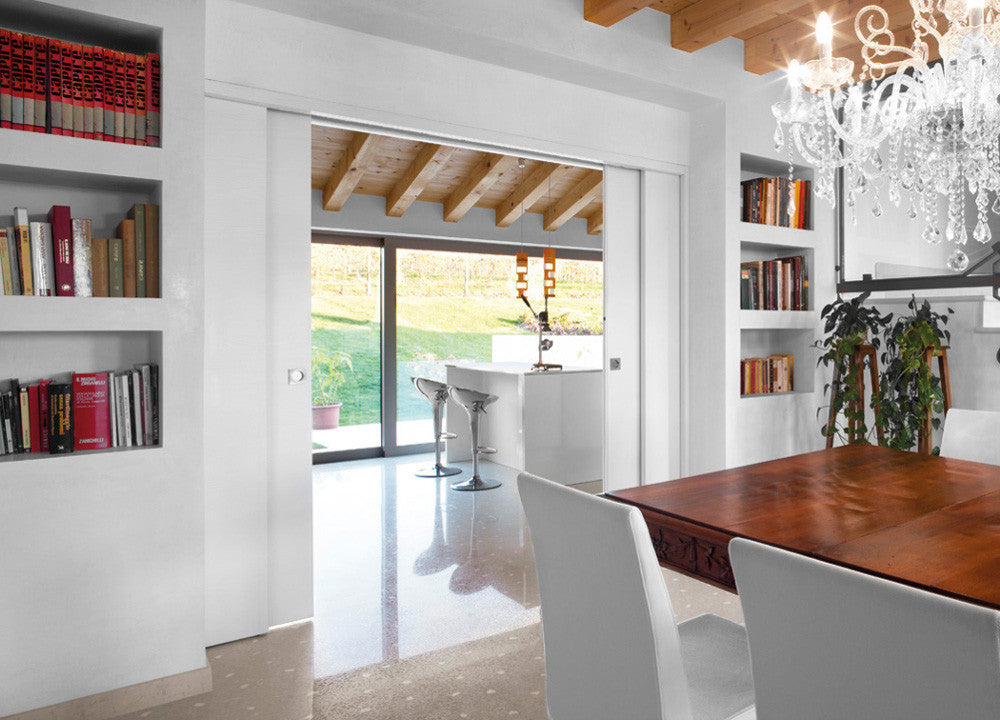

Double pocket doors allow you the freedom to change your room from open plan to cosy in one easy movement without constraining your room layout.

Imagine opening up and closing off different areas of your layout in an instant, with doors that are there when you need them, and slide into a pocket in the wall when you don’t. And because the doors slide into a pocket in the wall, the doors themselves do not take up valuable space in the room when they are open.

Please note: If choosing a Bias, Bias DS, Self Close accessory or a handle, please select the 2 x option

Quantity

View full details

The Eclisse double sliding pocket door system can also be installed against an existing masonry wall by simply creating a false stud wall alongside the existing masonry one. All you need to do is to construct the frame in exactly the same way, still applying plasterboard to both sides of the frame for strength. By doing this you will only be adding 95mm or 100mm thickness to the existing wall. This is nothing compared to the space you will save by installing pocket doors instead of traditional hinged doors!

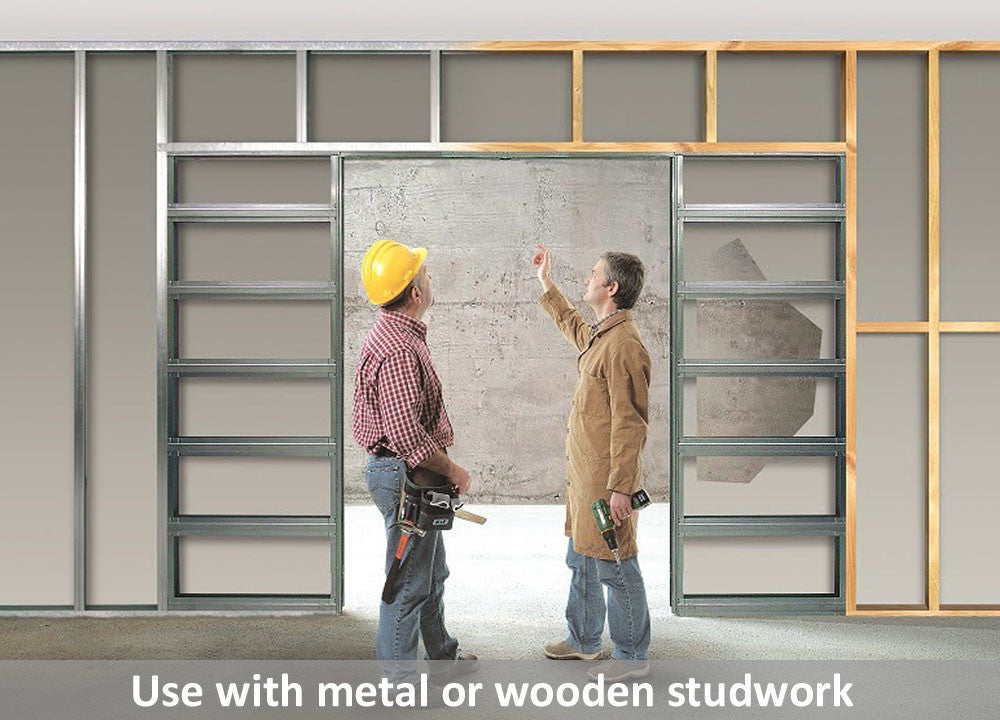

A quick word about your studwork

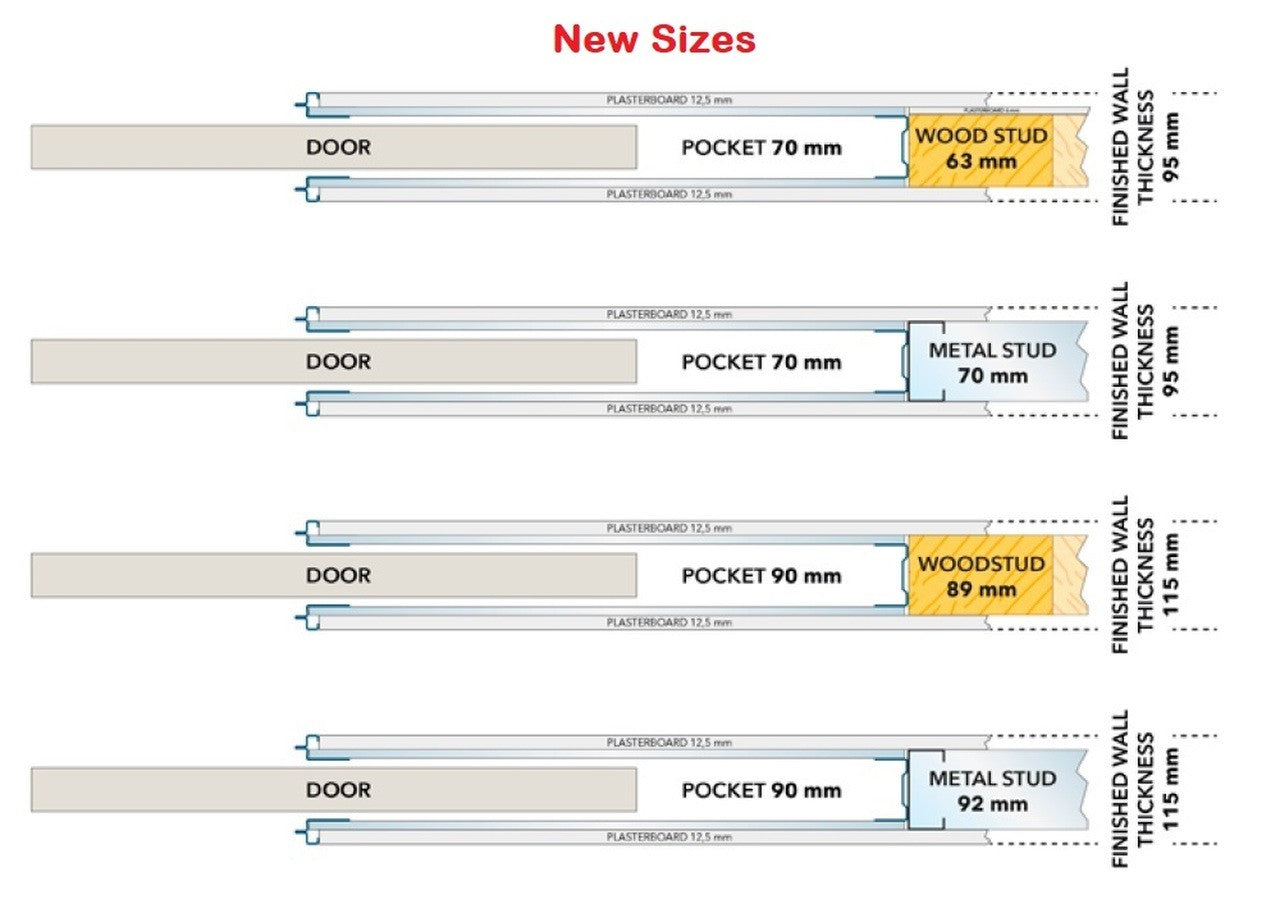

When you choose an ECLISSE pocket door system the first thing to consider is matching your stud thickness to the right ECLISSE pocket door thickness and the table below shows you how to do this. Why are you looking to match it up? Because when it matches up, plaster boarding the pocket and the rest of the wall is as quick and easy as it possibly can be.

We recommend that you use either timber or metal stud in the table below. These are the most readily available stud work sizes and to make life easier we make frames to match.

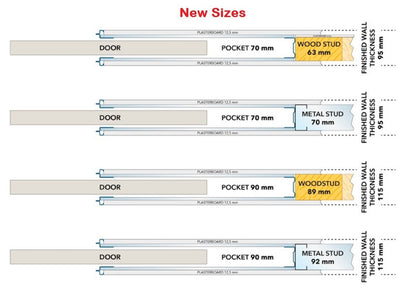

Timber Stud	Nominal Size	Actual Dimensions	Best Fit Eclisse Pocket Door System	Assemble frame to:	Plasterboard option for the pocket and for the stud work
CLS- Canadian Lumber Standard	3” x 2” / 75 x 50mm	63 x 38mm	95mm finished wall thickness	70mm pocket thickness	Click to see larger view
CLS- Canadian Lumber Standard	4” x 2” / 100 x 50mm	89 x 38mm	115mm finished wall thickness	90mm pocket thickness	Click to see larger view
Scant/ construction timber	3” x 2” / 75 x 50mm	69/70 x 47*mm	95mm finished wall thickness	70mm pocket thickness	Click to see larger view
Scant/ construction timber	4” x 2” / 100 x 50mm	94/95 x 47*mm	125mm finished wall thickness	100mm pocket thickness	Click to see larger view

*This dimension can vary

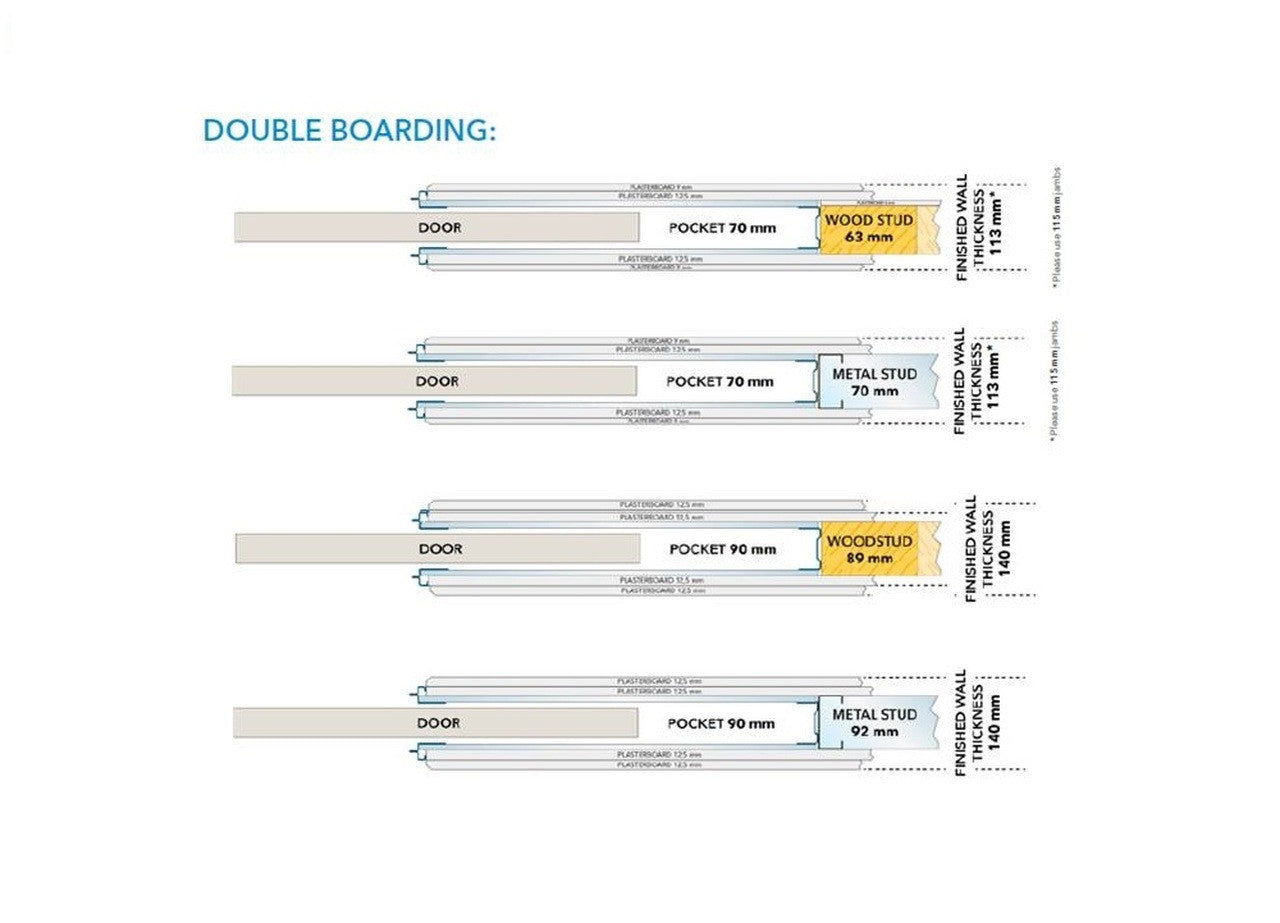

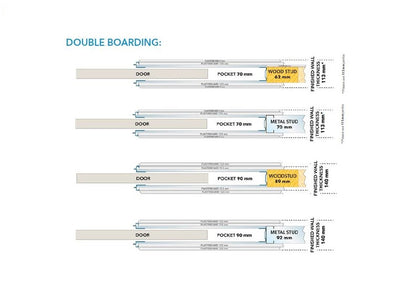

Click here to see full version of this table including metal stud and more options for plaster boarding as well as double boarding

Look at the relevant Technical Spec to determine your overall frame size/door panel size

Our pocket door systems come in standard overall frame sizes designed to perfectly fit a wide range of standard door panel sizes. Our technical specs give you all the information you need to decide on your choice of frame. You need to make sure you have enough overall space to build the stud work to accommodate and install the overall frame. You can then look at the range of overall frame sizes that will fit into the space you have available and the technical spec will tell you the door panel sizes that the different frames will accommodate.

Technical Specs:

Download

Other options:

Need a non standard size? Call our friendly Customer Services Team on 0333 5770828 for a quote. Currently available in 100 & 125mm finished wall thickness other sizes coming soon.
Need a wider passage width (i.e. opening)? Have a look at our telescopic pocket door systems.

Standard Delivery 1 - 3 Working Days - £5.99
Order before 1pm on a weekend for next day delivery (Eligible Postcodes Only) - £9.99
Dedicated Day Delivery (Eligible Postcodes Only) - £19.99

For deliveries to highlands, Islands and Northern Ireland please call 0333 5770828

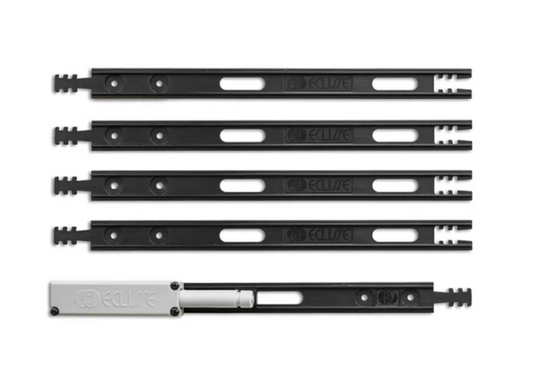

Compatible Accessories

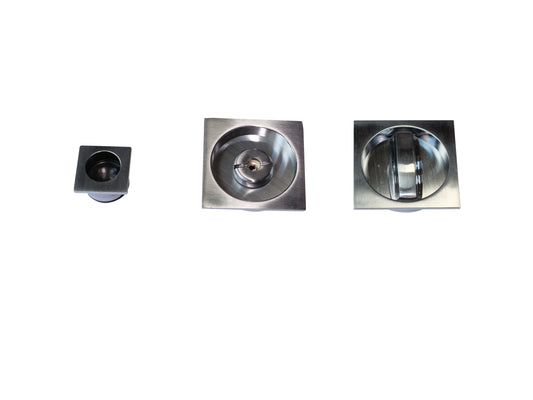

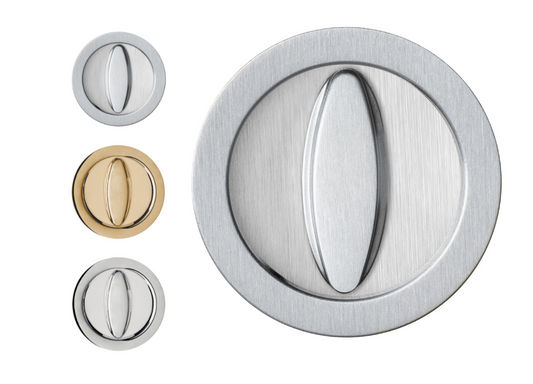

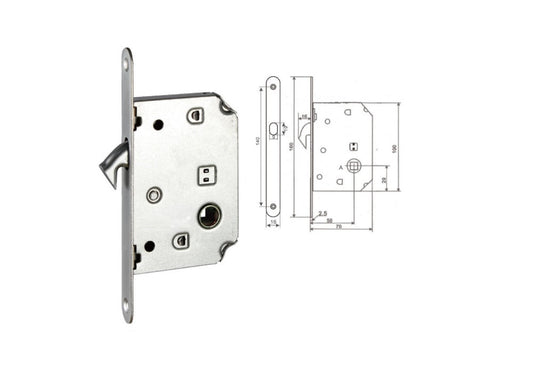

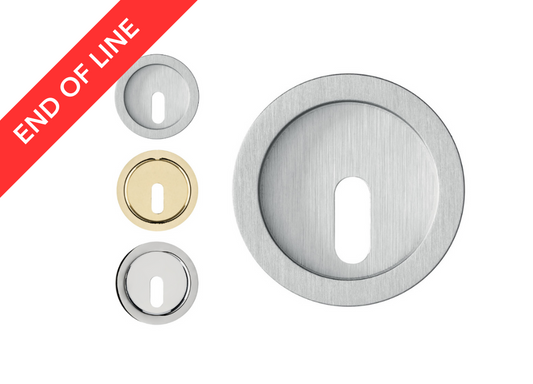

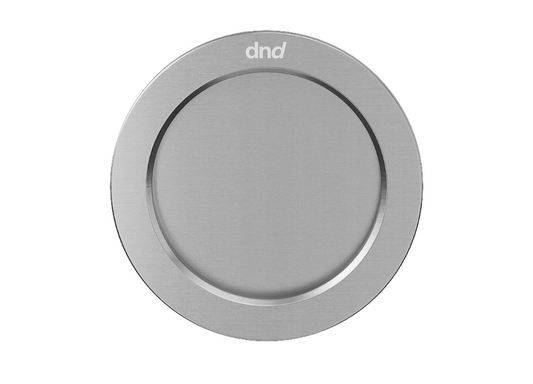

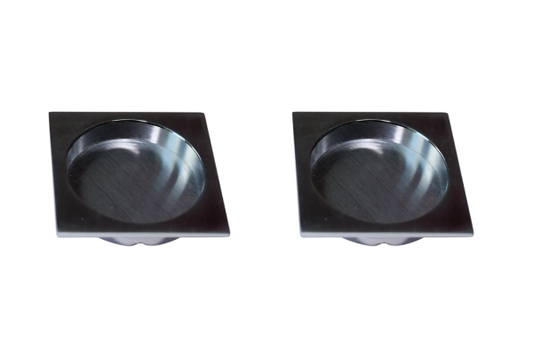

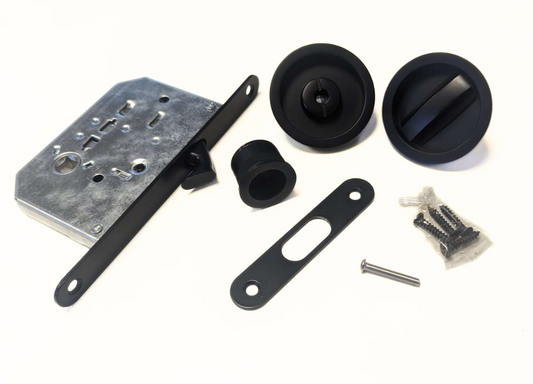

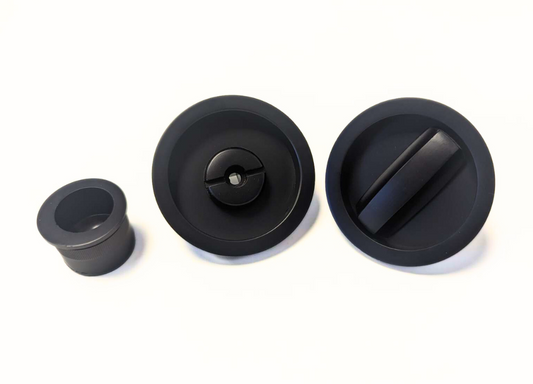

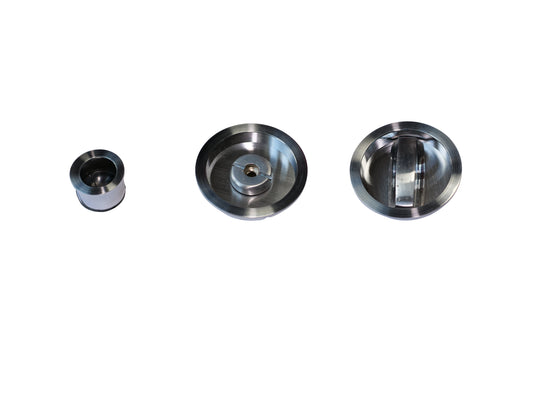

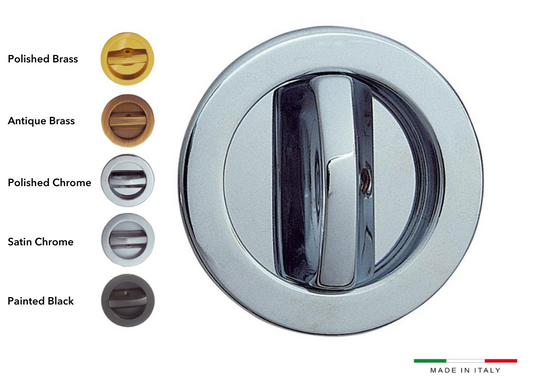

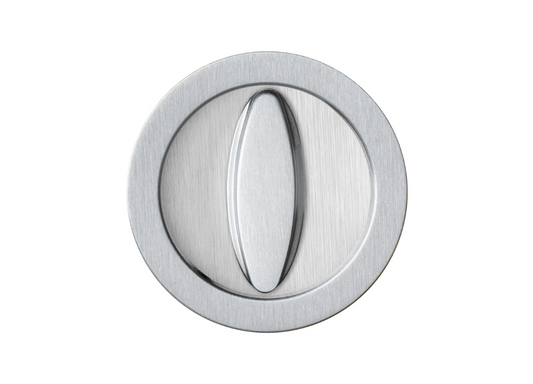

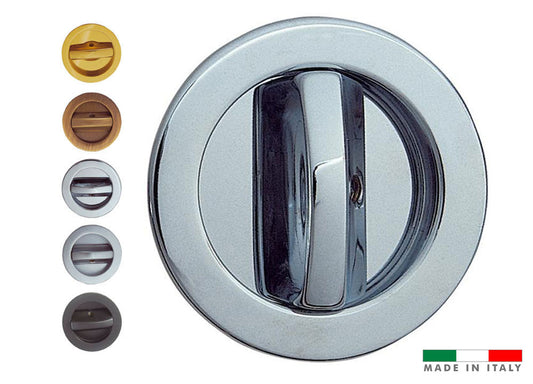

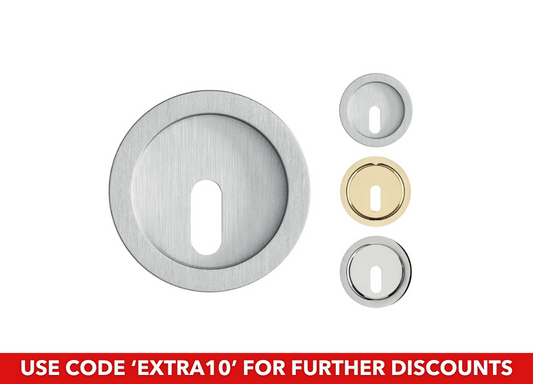

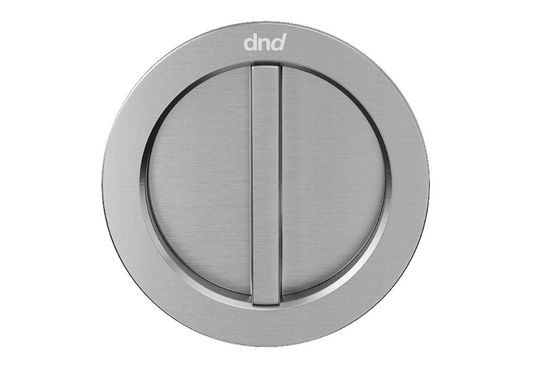

Compatible Handles

WHAT'S INCLUDED IN THIS KIT:

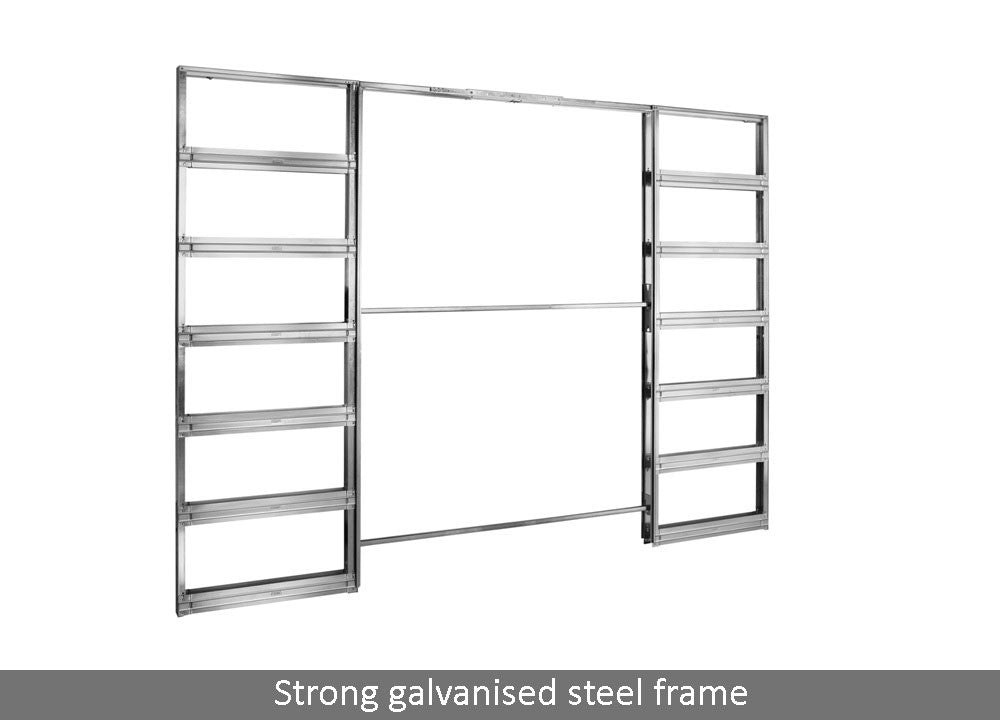

Galvanised steel frame Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of two full pockets and a track.

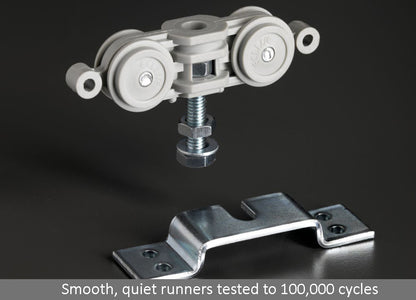

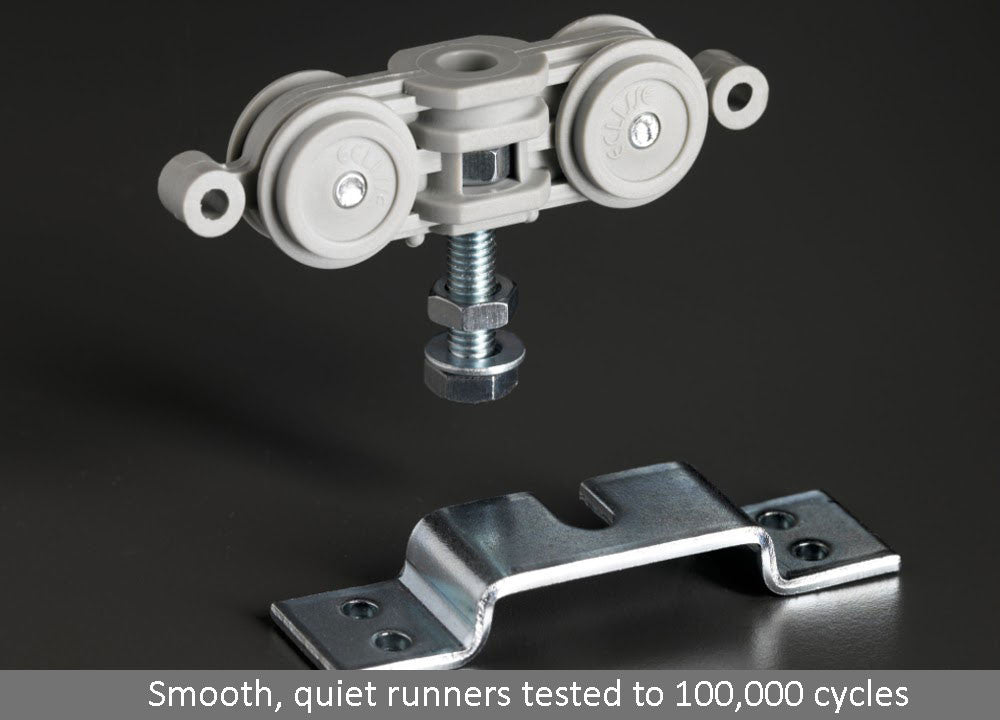

Runners Runners are tested to 100,000 cycles (that’s around 25 years of average use!)
Extractable Track Track can be extracted without having to break into the wall. (See Tech Tips section in Technical tab for instructions).
Front and rear door stop Can be adjusted to determine how far the door protrudes from the pocket.
Metal anti-warp door profile Slots into a channel in underside of door. Not visible but ensures that if your door warps it continues to slide smoothly.
Self centering door guide Clicks into frame, doesn't screw into the floor, so it is perfectly centred every time.
Fixings Even the screws to attach the plasterboard to the frame are included.

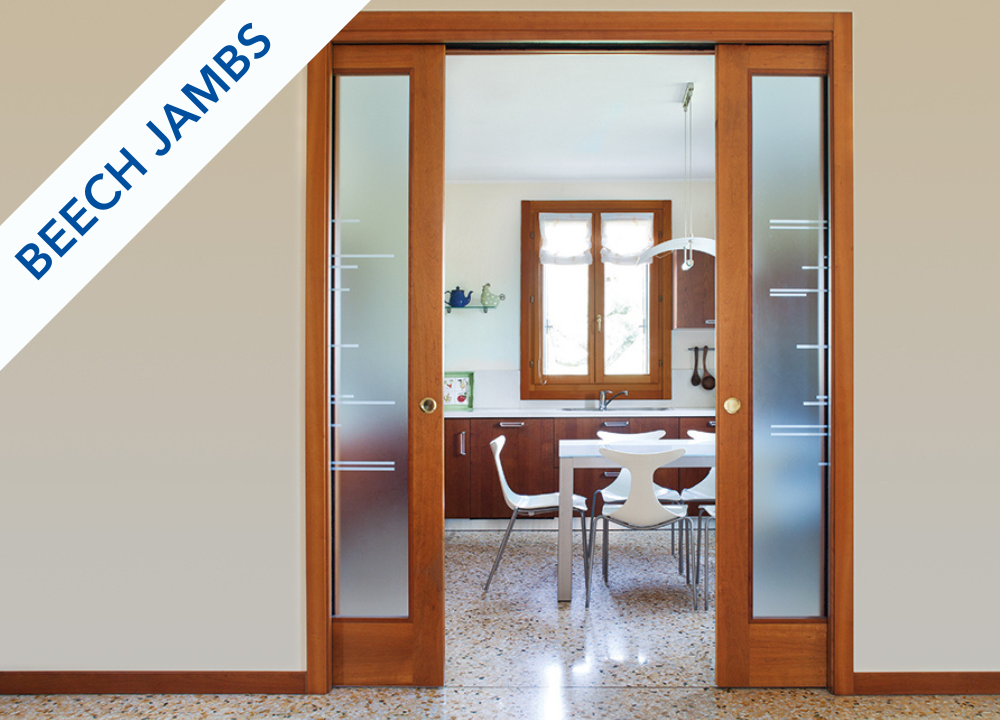

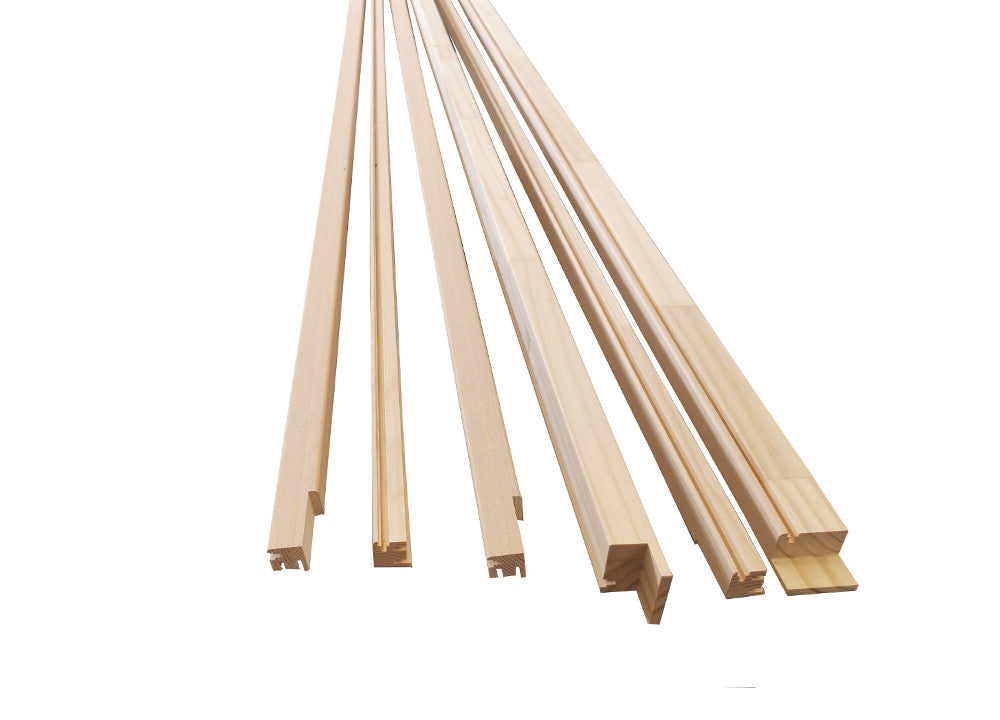

Jamb kitComes complete with jamb kit made with beechwood veneer* that is unfinished and paint/stain ready. The jamb kit includes dustbrushes and recessed door post with integral bumpers for a professional finish. What is a jamb kit? View explanation and see parts list here.
We reserve the right to supply jambs with an alternative wood/finish
*Parts List with Images View

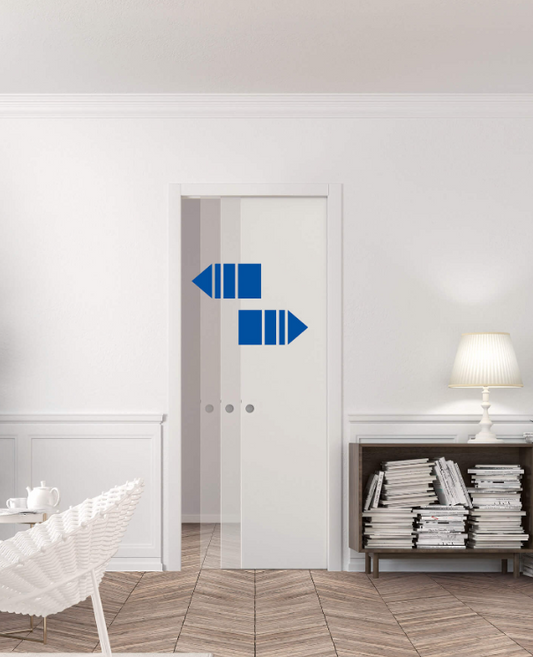

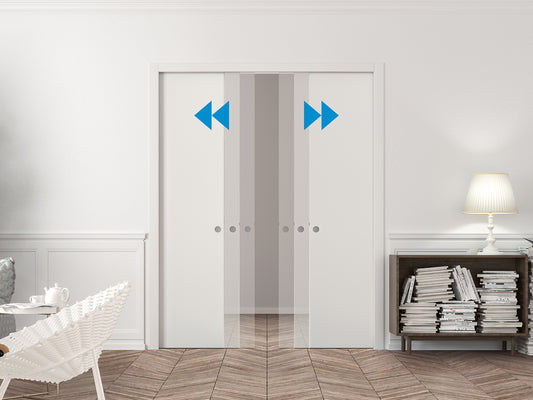

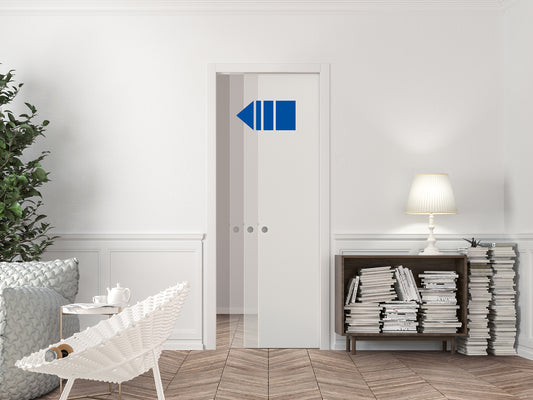

OPTIONAL ACCESSORIES: BIAS® soft-close with anti-slam, BIAS® DS Bi-directional soft-close with anti-slam, double door coordination kit and also soft-close.

GUARANTEE: 15 year guarantee on the complete Eclisse steel pocket system and runners.

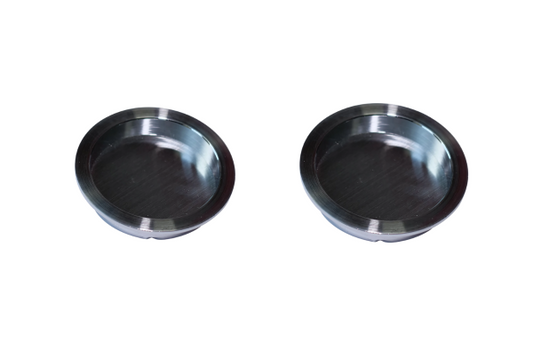

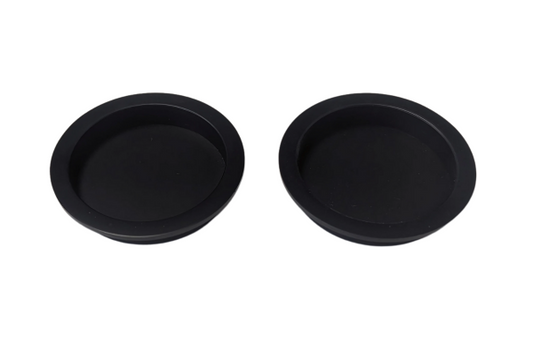

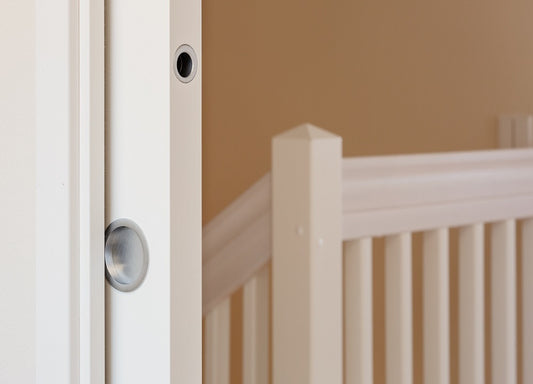

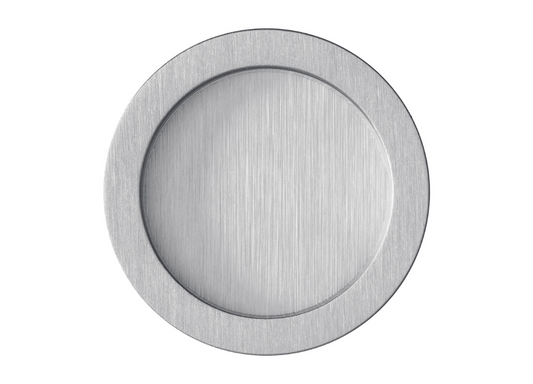

NOTE: When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.

DOOR PANEL WEIGHT: 100kg (150kg available on request)

BESPOKE SIZING AVAILABLE?: Yes- Max door panel width 2026mmm; Max door panel height 2910mm. For width sizes over 1300mm and heights over 2600mm a finished wall thickness of 150mm is required.

DOOR THICKNESS: 35 - 44mm

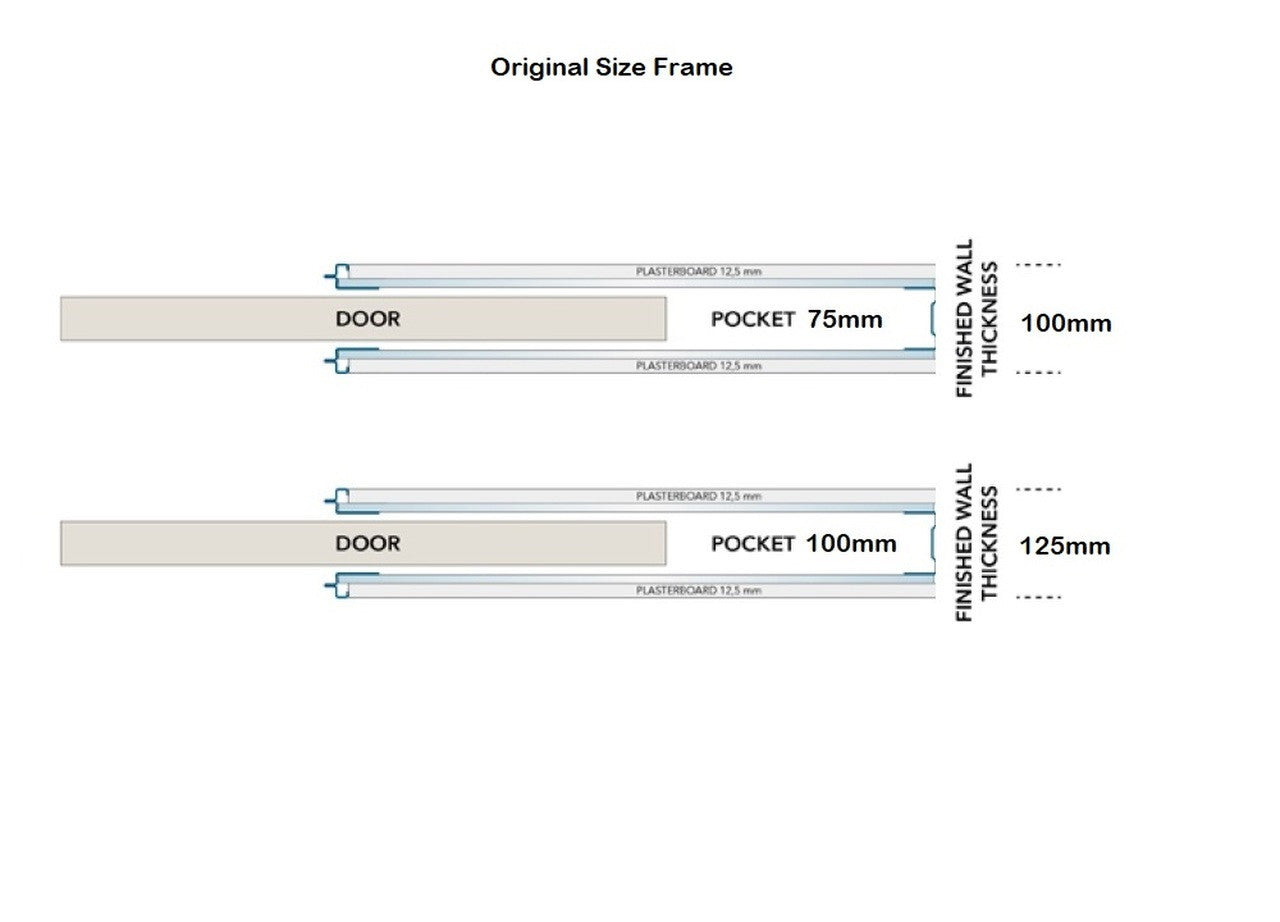

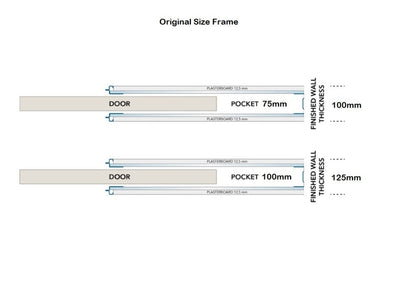

FINISHED WALL THICKNESS: 95, 100, 115, 125 or 140mm (for double boarding the 90mm frame)

SYSTEM TYPE: For use with timber doors

JAMB KIT SUPPLIED?: Yes- the jamb kit comes with beechwood veneer* that is unfinished and paint/stain ready.

DOOR SUPPLIED?: No- you can use a standard UK or ROI door panel size

---

DOWNLOADS

SIZING CHART & TECHNICAL SPEC: DownloadI

NSTRUCTIONS: 70/90mm Frame 70/90mm Door Installation | 75/100mm Frame | Connector

CAD DRAWING (.dwg): 95mm finished wall thickness | 115mm finished wall thickness | 100mm finished wall thickness | 125mm finished wall thickness

NBS SPEC: Download

BIM: Download

---

TECH TIPS:

Instructions on how to remove the door from an Eclisse Classic Pocket Door System - Download PDF.
Video on how to extract the track. View(NB. To access the track you will need to follow the instructions above on how remove the door first. You may also need to adjust the door stop to access one of the screws).

* We reserve the right to supply jambs with an alternative wood/finish.
